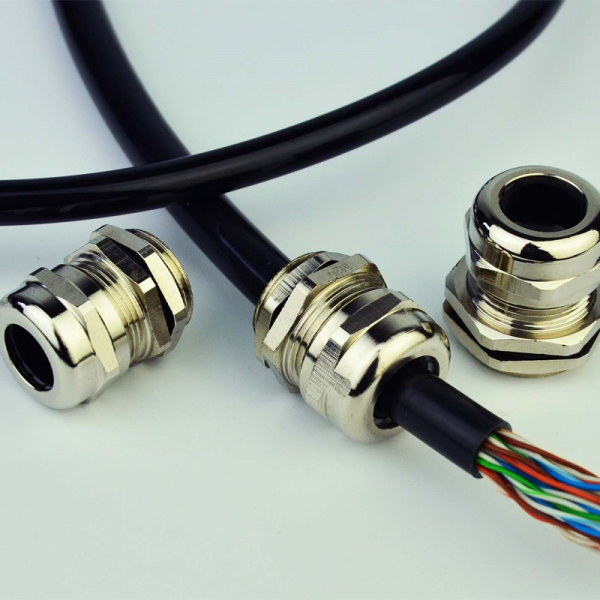

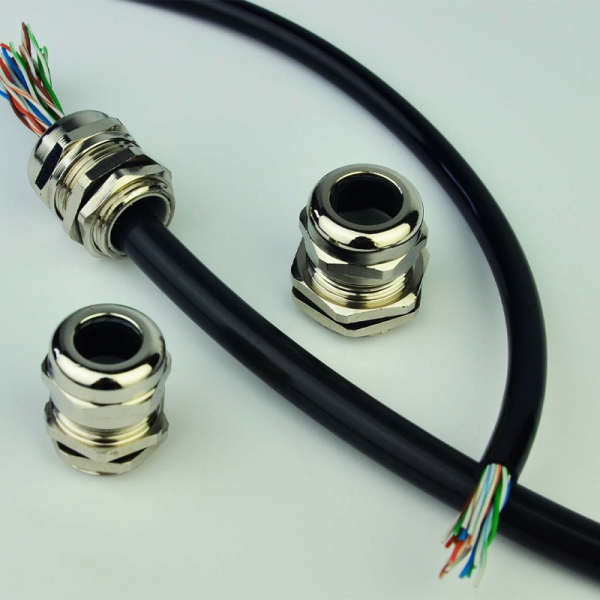

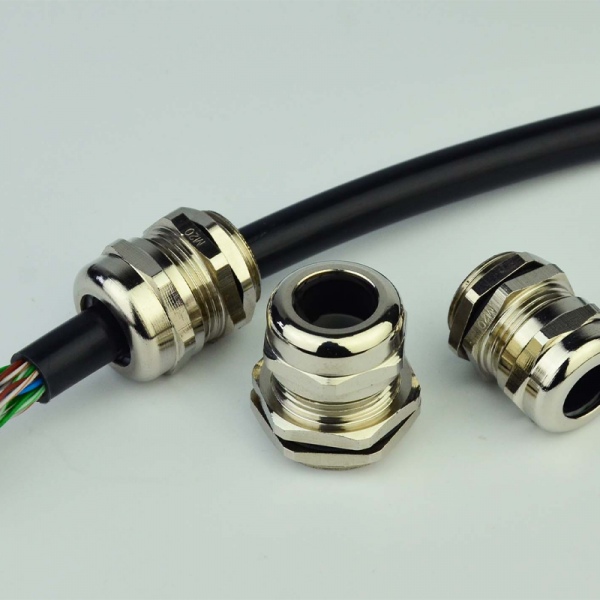

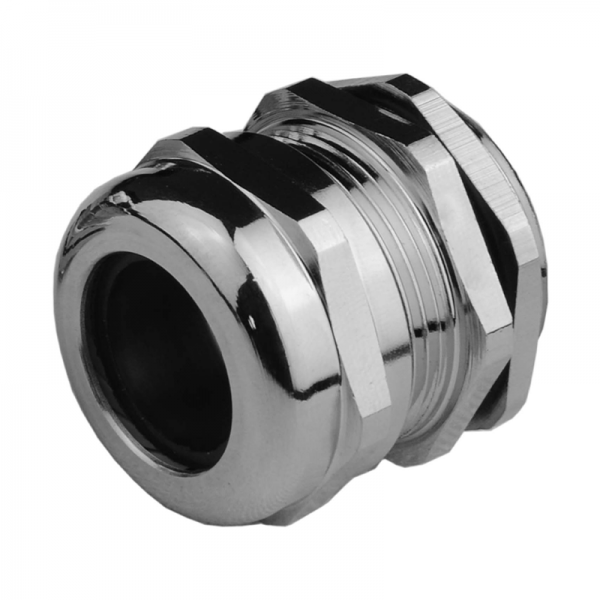

Metal cable waterproof connector is a connector used for waterproof sealing and mechanical fixing of cable inlet and outlet, with excellent waterproof, dustproof and anti-pull-off capabilities. It is widely used in outdoor equipment, automation equipment, distribution cabinets, electric control boxes, lighting systems and other fields, especially suitable for harsh industrial environments.
Product features:
High-quality metal material: brass nickel-plated, stainless steel 304/316 and other materials, corrosion-resistant, impact-resistant and durable.
High protection level: The protection level can reach IP68, with excellent waterproof and dustproof performance.
Strong sealing performance: built-in waterproof sealing ring to ensure that the cable entrance is tightly sealed to prevent water vapor, oil and dust from entering.

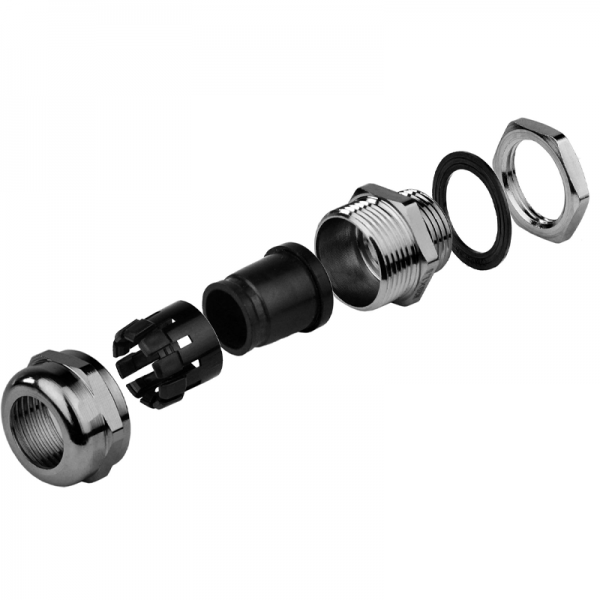

Firm locking: adopts a multi-stage locking structure to effectively prevent the cable from sliding and pulling off.
Wide range of adaptation: a variety of specifications, suitable for cables of different outer diameters, supporting multiple thread standards such as metric (M), imperial (G), PG, NPT, etc.
General parameters:
Item Parameter Description
Material Nickel-plated brass / Stainless steel 304 / Stainless steel 316
Sealing ring material Nitrile rubber (NBR) / Silicone (high temperature resistant)
Protection level IP65 / IP67 / IP68 (depending on the structure and installation)
Working temperature -40℃ ~ +100℃ (up to +120℃ instantly)
Thread type M (metric) / G (imperial) / PG / NPT (American cone)
Adapter cable outer diameter Φ3mm ~ Φ50mm (support customization)
Installation method Locking nut fixing / panel opening installation
Applicable scenarios:
Outdoor LED lamps
Outdoor monitoring equipment
Power distribution cabinet, electric control box inlet
Industrial automation equipment
Wind power generation, solar energy equipment
Ports, ships, telecommunications engineering
Petroleum, chemical, heavy industry sites
Optional services:
Support OEM/ODM customization logo, packaging, size
Samples and certification documents such as RoHS, CE, IP68 can be provided
English product manuals and foreign trade export service support are provided
