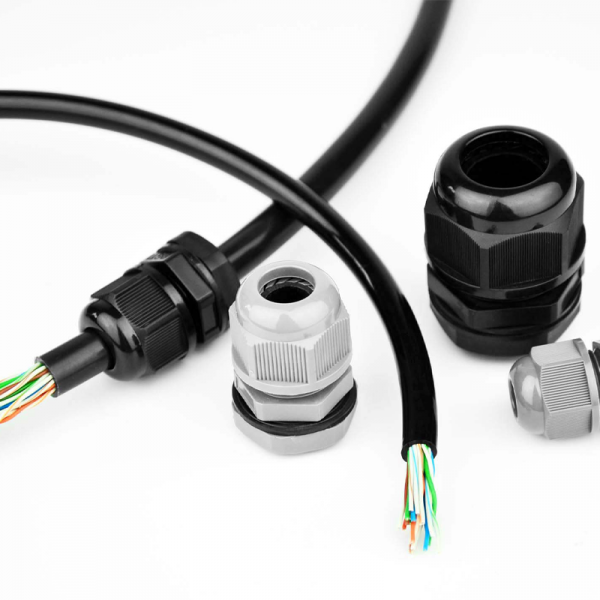

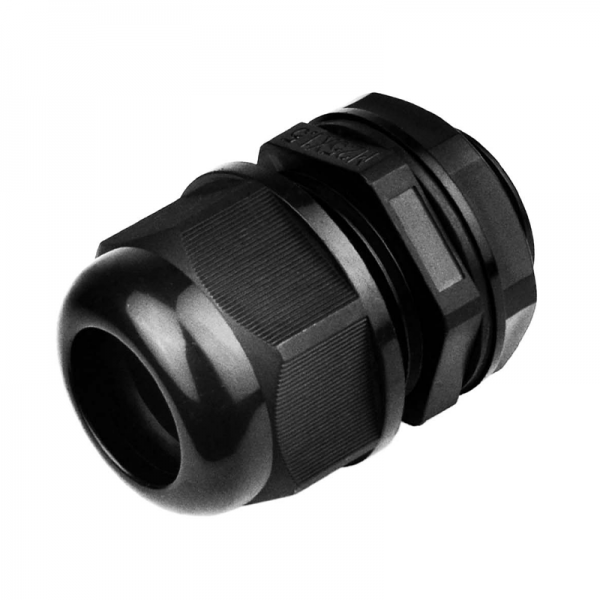

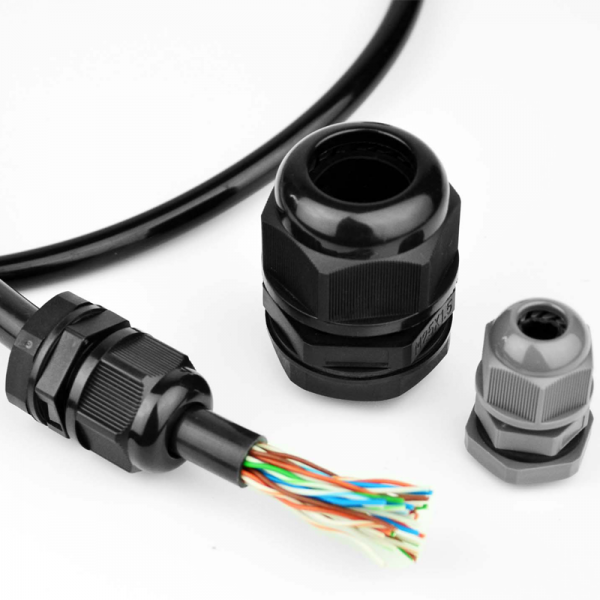

Nylon cable waterproof connector is a connection element widely used in the protection of equipment cable inlet and outlet. It has good waterproof, dustproof, tensile and shockproof performance. It is widely used in electric control boxes, distribution cabinets, mechanical equipment, lighting systems, automation equipment and other fields. It is an indispensable component in industrial wiring systems.
Product features:
✅ High-strength nylon material: reinforced PA66 material is used, which is wear-resistant, oil-resistant, corrosion-resistant and has a long service life.
✅ Excellent protection performance: The protection level is as high as IP68, suitable for outdoor or harsh working conditions.
✅ Easy installation: tool-free installation, insert the cable and tighten it to lock.

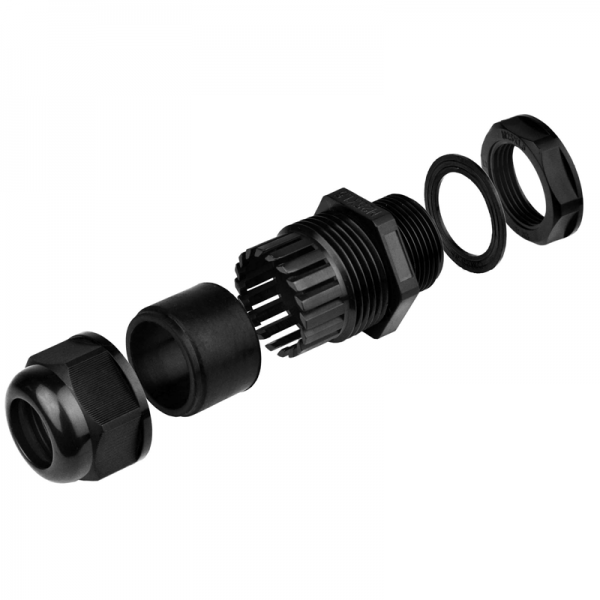

✅ Firm sealing: built-in rubber sealing ring, strong sealing, prevent dust and moisture from invading the interior of the equipment.

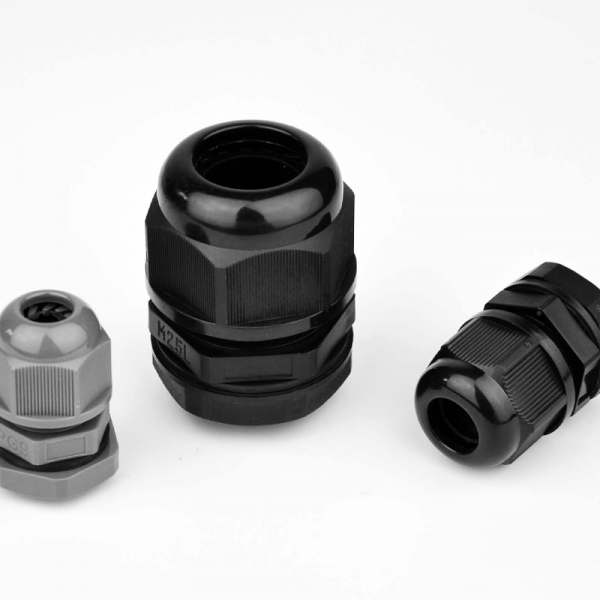

✅ Rich specifications: a variety of thread types and cable apertures are available to meet the needs of different equipment.
Product parameters:
Item Parameter Description
Material Main body: PA66 nylon
Sealing ring: Nitrile rubber (NBR) or silicone
Protection level IP65 / IP67 / IP68 (depending on the model)
Working temperature -40℃ ~ +100℃ (up to 120℃ for a short time)
Flame retardant level UL94 V-2 (optional V-0)
Applicable cable outer diameter Φ3mm ~ Φ48mm (customizable)
Thread specification M (metric) / PG (German) / G (English) / NPT (American tapered thread)
Color Black, gray, white (customizable)
Packing method Single packaging / bulk / custom label packaging
Application scenarios:
Electric control box, distribution cabinet
Industrial automation equipment
LED outdoor lighting
Instruments, wind power / photovoltaic equipment
Security monitoring system
Mechanical equipment, cable wiring engineering
Optional services:
✔ OEM customization LOGO, color, label, packaging
✔ Provide ROHS / CE / IP68 and other certification reports
✔ Support Chinese and English data output, sample delivery, batch quotation
✔ Can supply nylon plugs, waterproof hose connectors, fixed brackets and other cable accessories
