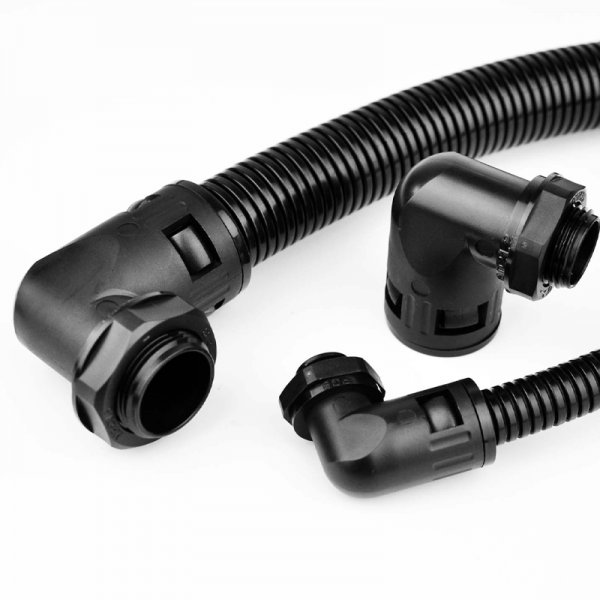

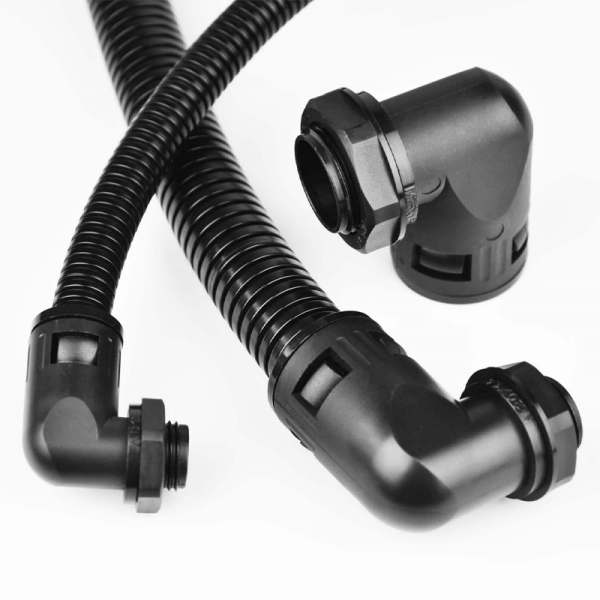

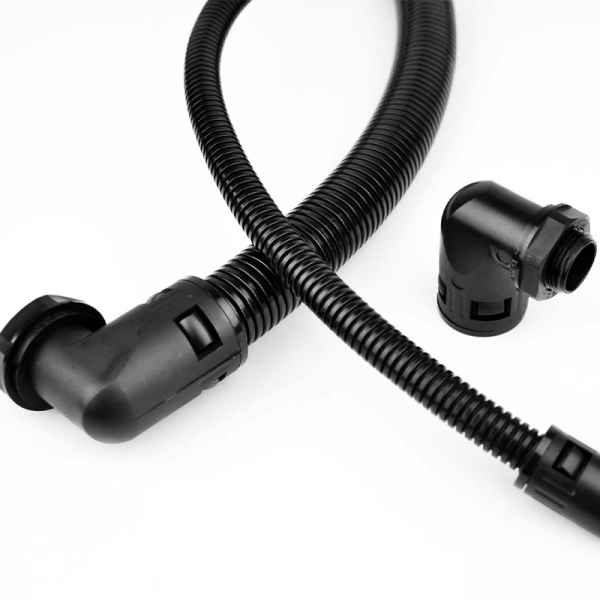

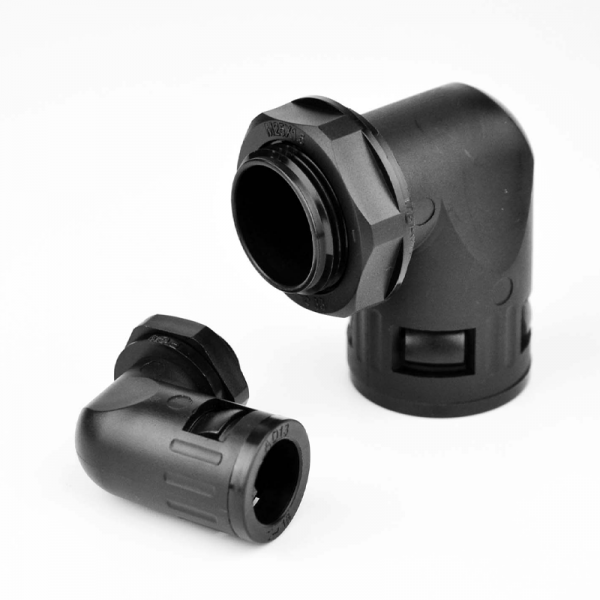

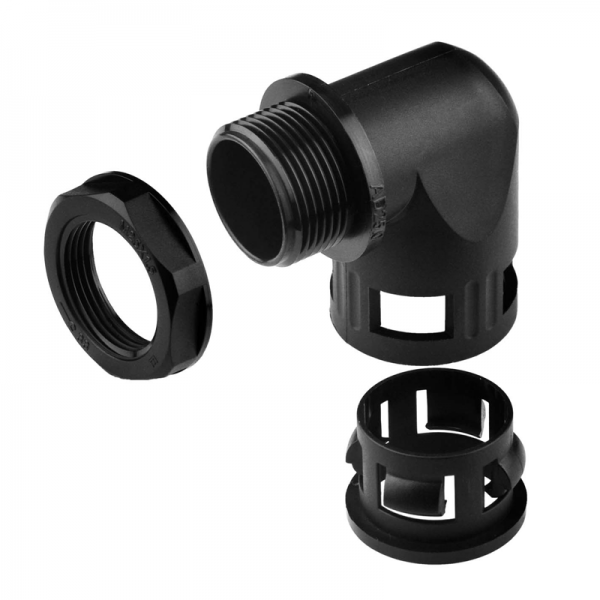

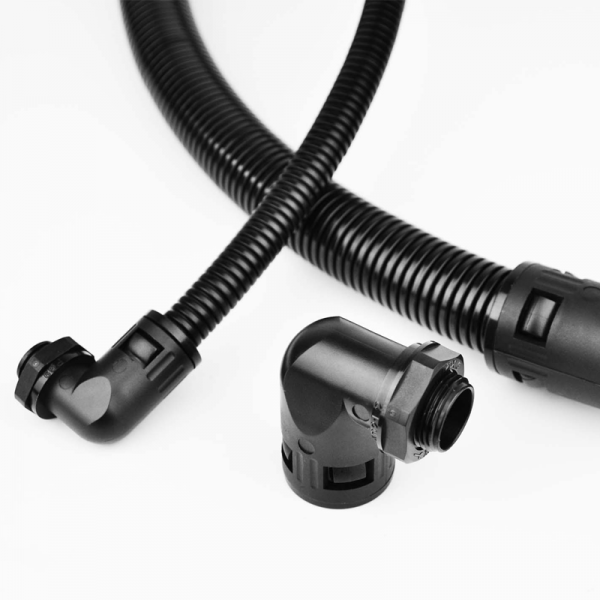

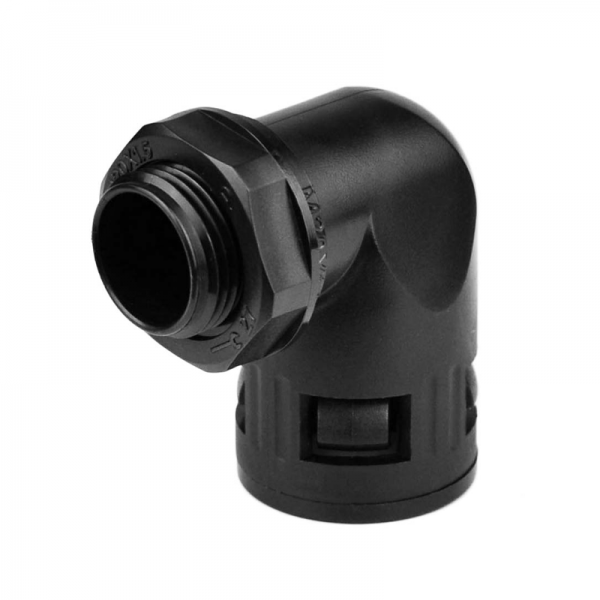

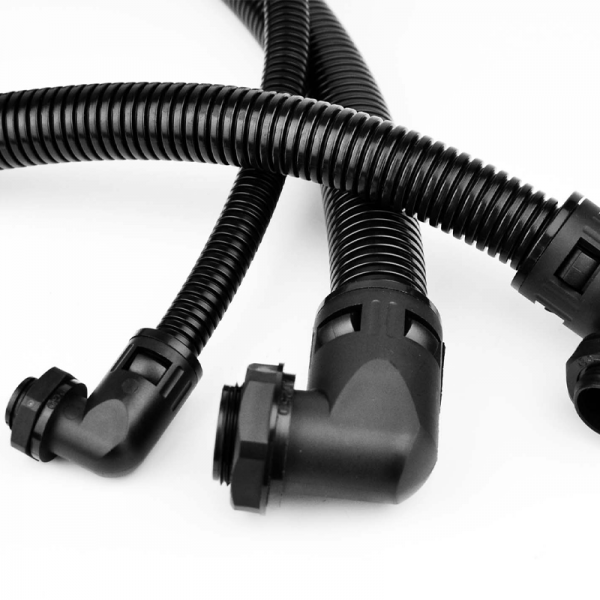

The right-angle hose connector is a special connector that bends the corrugated hose at a 90-degree angle. It is injection molded with high-strength engineering plastics (such as nylon PA6, polypropylene PP, etc.) and has good mechanical strength, flexibility and corrosion resistance. It is widely used in cable turns, narrow space wiring, electrical equipment outlet protection and other application scenarios that require angle adjustment.
2. Product Features
✅ 90° right-angle structure: suitable for wiring environments in corners, edges, and narrow spaces
✅ Quick installation design: Hose is locked as soon as it is inserted, with optional snap-on or screw-on structures
✅ High protection level: The sealing ring version has a protection level of up to IP66/IP67
✅ Strong weather resistance: heat resistance, cold resistance, UV resistance, and aging resistance
✅ High compatibility: suitable for various types of corrugated hoses (PA, PP, PVC, etc.)
3. Applicable fields
Corner cable direction in the electric control cabinet
Automobile and rail transit cable protection system
Industrial automation equipment outlet angle interface
Internal wiring of communication, power, and mechanical equipment
Construction machinery, machine tool equipment cable connection
4. Product material options
Material characteristics
PA6 nylon High strength, wear resistance, oil resistance, heat resistance (-40℃ ~ +125℃)
PP polypropylene Flame retardant, corrosion resistance, acid and alkali resistance, environmental protection
PVC Low cost, good softness, suitable for use in conventional environments
5. Product specifications (example)
Model Applicable bellows outer diameter Installation method Threaded connection (optional) Protection level
ELC-10 Φ10mm snap-on quick installation Optional internal thread M10 IP54 / IP66
ELC-16 Φ16mm Insert + tighten Optional locking nut M16 IP66 / IP67
ELC-25 Φ25mm snap-on locking M25 thread, built-in sealing ring IP67
More specifications Customizable Various structural forms Optional M/G/PG/NPT threads Customizable
VI. Installation method diagram (with pictures)
Hose insertion → Automatic locking snap-on fixation
Can be screwed into the fixing seat or panel screw hole
If higher sealing is required, the model with sealing ring can be selected
VII. Optional accessories
📌 Panel mounting locking nut
📌 Waterproof sealing ring

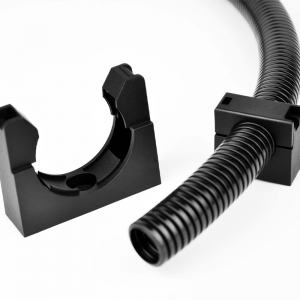

📌 Slot fixing clamp
📌 Bellows and fixed base assembly
VIII. Customizable service
🎨 Available colors: black, gray, orange, etc. (customization supported)
🏷️ Printing service: customer LOGO and batch number can be added
🔧 Special elbow angle: non-standard angles such as 45° and 120° can be customized
📄 Provide environmental certification information such as RoHS and REACH
