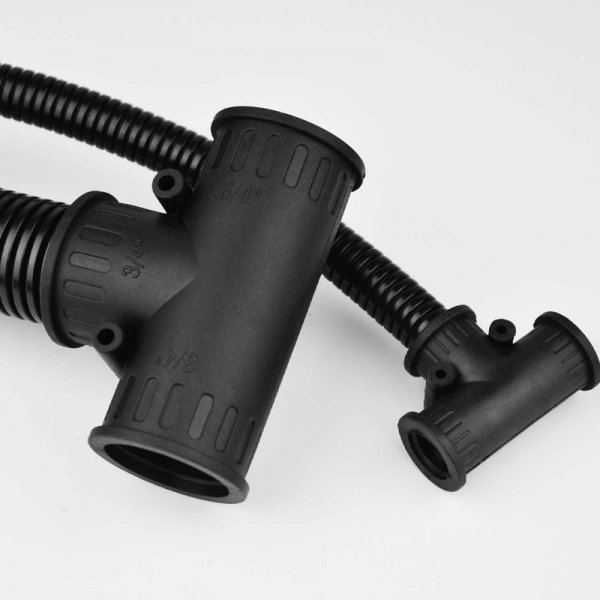

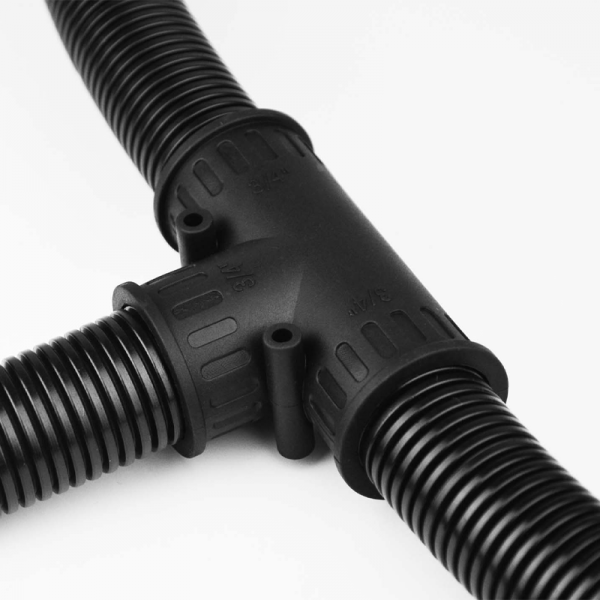

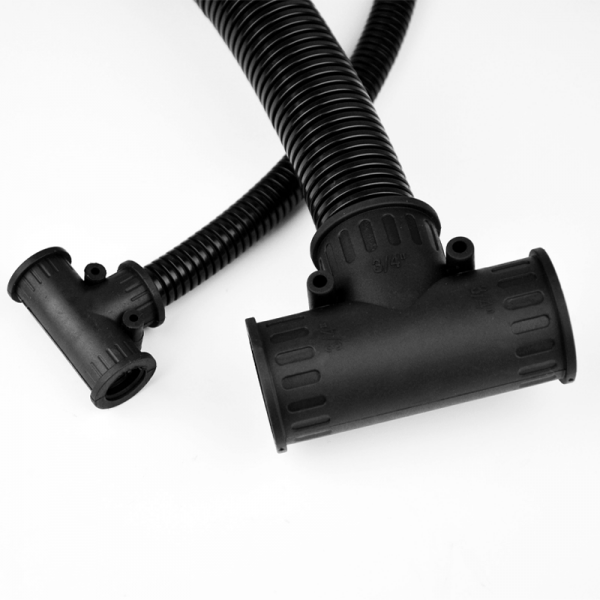

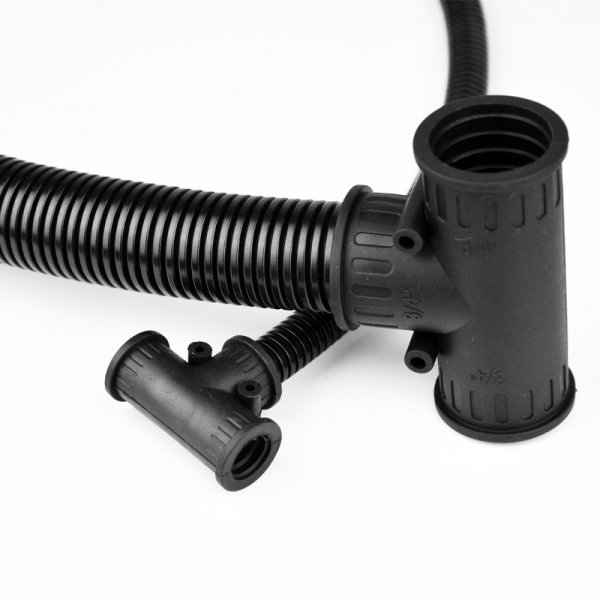

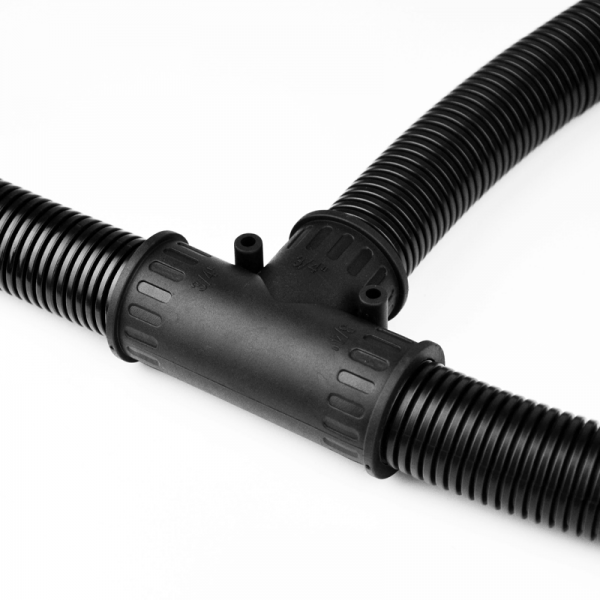

The T-type three-way hose connector is a corrugated pipe connector specially used for three-way branch wiring scenarios. It has a “T”-shaped structure and is used to connect three corrugated pipes at a 90° angle to achieve three-way branching, confluence or diversion wiring of cable lines. The products are mostly made of high-strength flame-retardant nylon PA6 or polypropylene, with anti-slip, corrosion-resistant, and tensile-resistant properties. They are widely used in wiring systems such as industrial automation equipment, vehicle wiring harnesses, electrical control systems, and rail transit.
2. Product Features
✅ Integrated T-type structure: three-way docking corrugated pipe, more convenient branch wiring
✅ High adaptability: adapt to various outer diameter corrugated hoses (PA, PP, PVC, etc.)
✅ Firm connection: tooth locking design, firmly clamp the pipe body, strong pull-off resistance
✅ Strong weather resistance: high-performance nylon/PP material, UV protection, high temperature resistance, not easy to age
✅ Good protection performance: IP66/IP67 protection level can be reached depending on the model
✅ Easy installation: thread-free installation, plug and play, time-saving and efficient
✅ Multiple specifications available: support different pipe diameter interface combinations
3. Product structure composition
Main body (T-type three-way structure)
Three clamping tooth rings
Optional sealing ring (waterproof type)
Pressure cap (three branch ports)
4. Examples of common specifications and parameters
Model A end hose outer diameter B end hose outer diameter C end hose outer diameter Material Protection level Installation method
TPT-16/16/16 Φ16mm Φ16mm Φ16mm PA6 IP66 snap-on plug-in type
TPT-25/25/25 Φ25mm Φ25mm Φ25mm PP IP67 snap-on plug-in type
TPT-16/16/13 Φ16mm Φ16mm Φ13mm PA6 IP66 snap-on plug-in type
TPT-25/20/16 Φ25mm Φ20mm Φ16mm PP IP66 snap-on plug-in type
More specifications can be customized according to customer requirements, such as mixed size combinations, with sealing rings, waterproof tees, etc.
5. Application scenarios
⚙️ Three-way shunt or confluence interface for industrial equipment cables
🚗 Automotive and rail transit wiring harness branch connectors
📦 Electrical control boxes, distribution cabinets, multi-way distribution of outgoing lines
🏭 Intelligent manufacturing cable wiring system
🛰️ Communications, energy, power system cable layout
6. Optional services
🎨 Color customization: black, gray, orange, etc. are available
🧯 Flame retardant grade: supports UL94-V0, V2
🧵 Material customization: optional PA, PP, flame retardant nylon, etc.
🧰 Structure customization: reducing tee, lock structure, waterproof type
📦 OEM labeling: customizable brand logo, packaging, size combination
📄 Data support: provide CE, RoHS, REACH, IP certification reports, etc.
