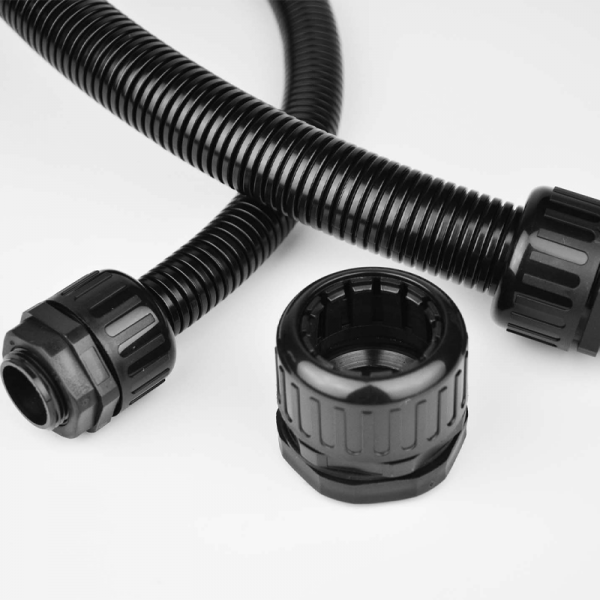

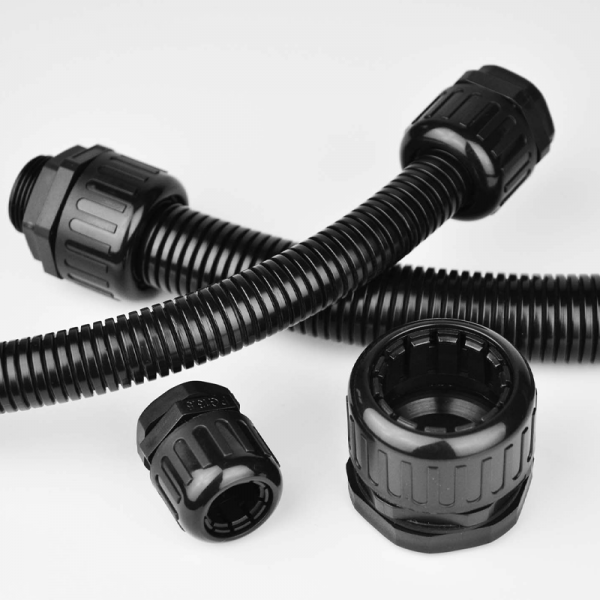

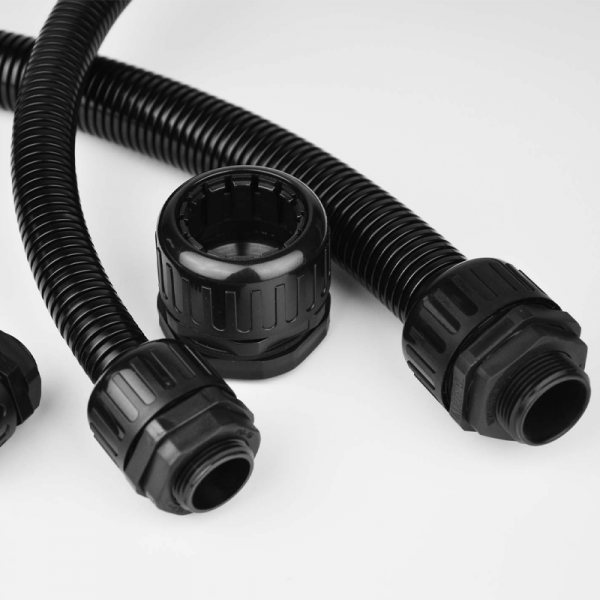

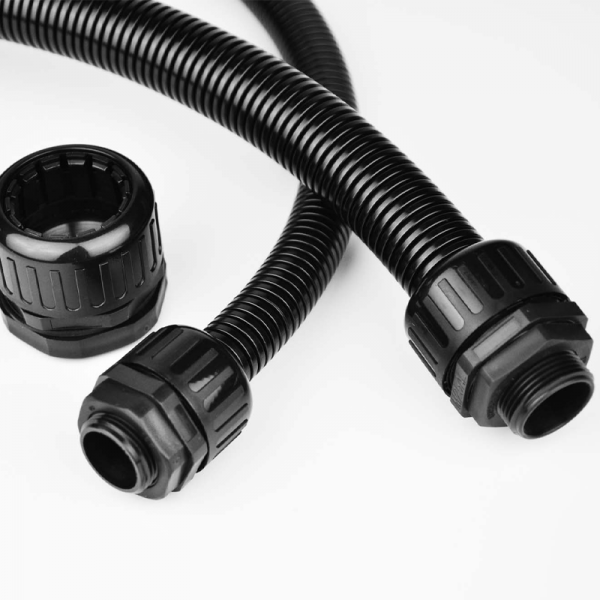

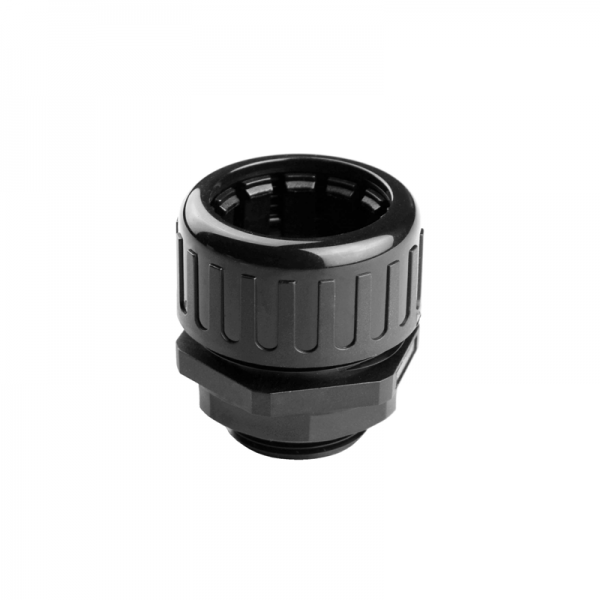

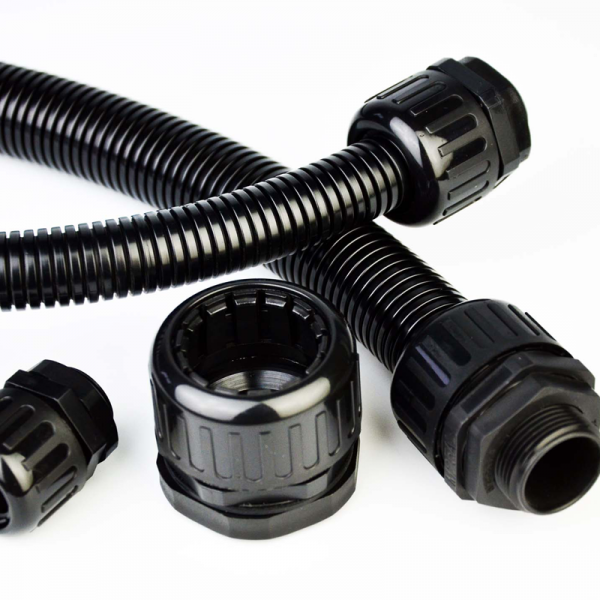

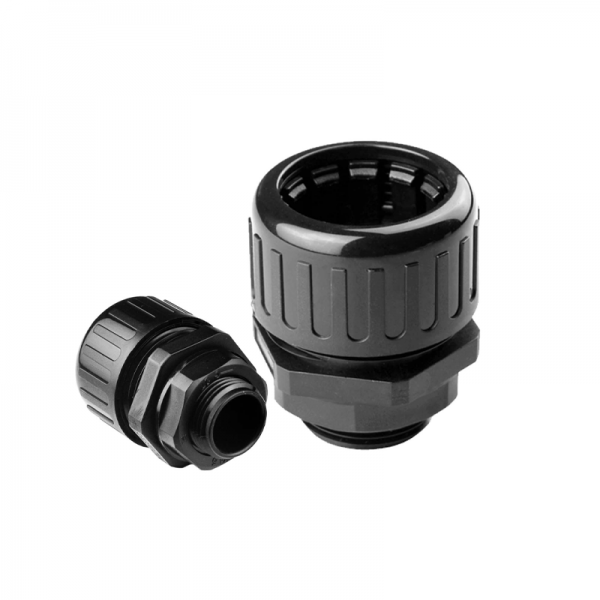

The tensile hose connector is a connector designed for connecting cable protection hoses to equipment. It has the characteristics of strong clamping, anti-loosening, and impact resistance. It is suitable for fixed connection of the port of the corrugated hose system. The product adopts a tensile structure design, which can effectively prevent the hose from falling off due to external pulling, vibration or bending. It is widely used in wiring systems such as power control, automation equipment, automotive wiring harnesses, and mechanical equipment.
2. Product Features
✅ Strong tensile design: built-in reinforced clamping mechanism, firmly locks the corrugated hose
✅ Durable material: PA6 nylon or flame-retardant PP, wear-resistant, corrosion-resistant, and aging-resistant
✅ High adaptability: suitable for hoses of various materials (PA, PP, PVC corrugated pipes)
✅ Easy installation: no tools are required, just tighten to complete the installation
✅ Optional thread types: M, PG, G, NPT and other international thread specifications
✅ Protection level: optional IP54~IP67 dust and water resistance

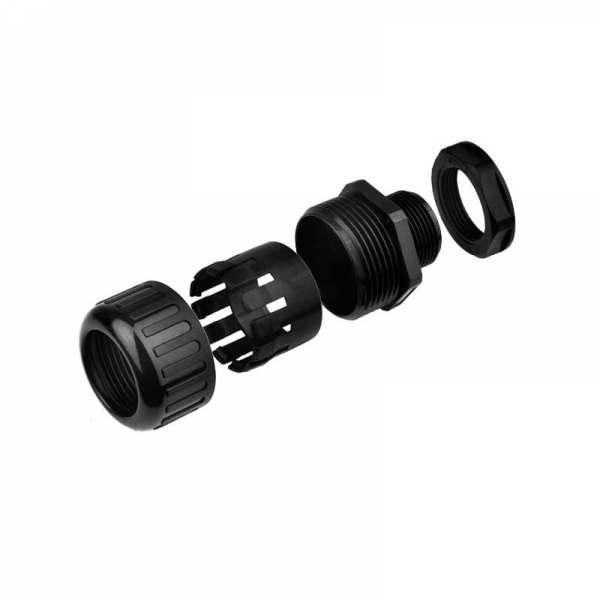

3. Product structure composition
Connector body (threaded section)
Card clamping ring (tensile structure)
Sealing ring (depending on whether it is waterproof)
Compression cap (screw-on type)
4. Product application scenarios
⚙️ Anti-slip connection of industrial equipment cables
🚘 Fixing of automotive wiring harness and engine compartment
⚡ Fixed outlet of hose in electrical control cabinet
📡 Wiring interface of communication equipment
🛠️ Automated production line, robot system
V. Specification parameter examples
Model Applicable hose outer diameter Thread specification Material Protection level Pull-off force
TLJ-13 Φ13mm M16x1.5 Nylon IP54-IP67 ≥80N
TLJ-16 Φ16mm PG13.5 PP IP66 ≥100N
TLJ-25 Φ25mm M32x1.5 PA6 IP67 ≥150N
TLJ-36 Φ36mm PG29 Nylon 66 IP67 ≥180N
Note: Different bellows models need to use corresponding tooth structure joints to ensure locking performance.
6. Optional services
🧯 Flame retardant performance: meets UL94 V-0/V-2 requirements
🎨 Color customization: black, gray, orange, etc. are available
🧵 Thread customization: M, PG, G, NPT and other specifications are available
🏷️ OEM customization: supports customer LOGO customization and packaging services
📑 Data support: CE, RoHS, REACH, MSDS and other certification data can be provided
