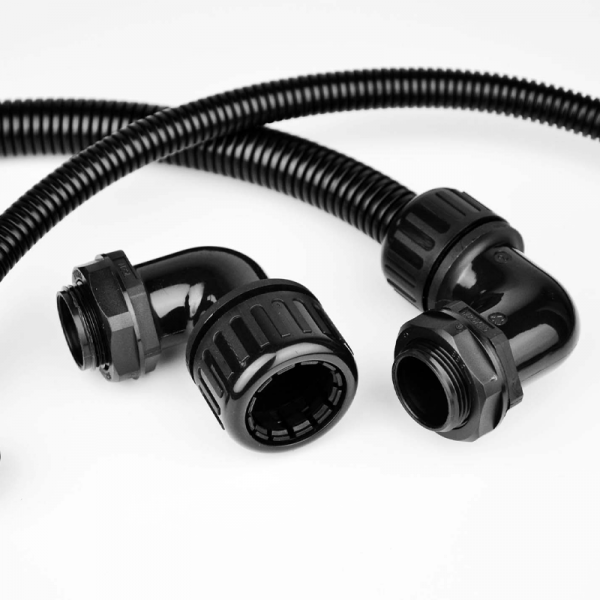

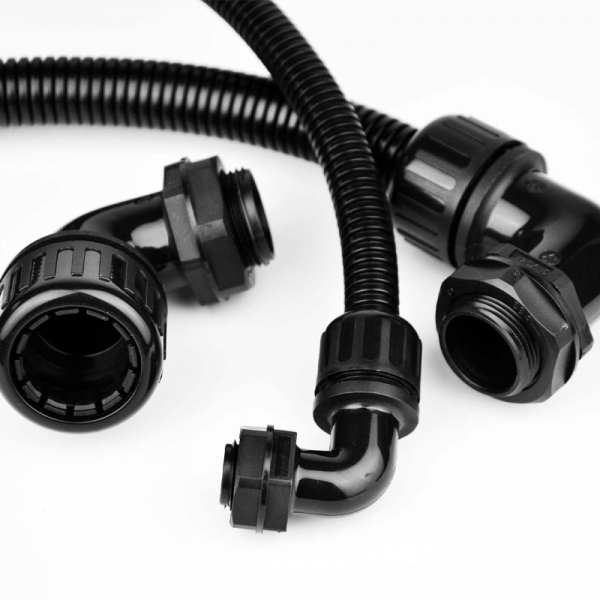

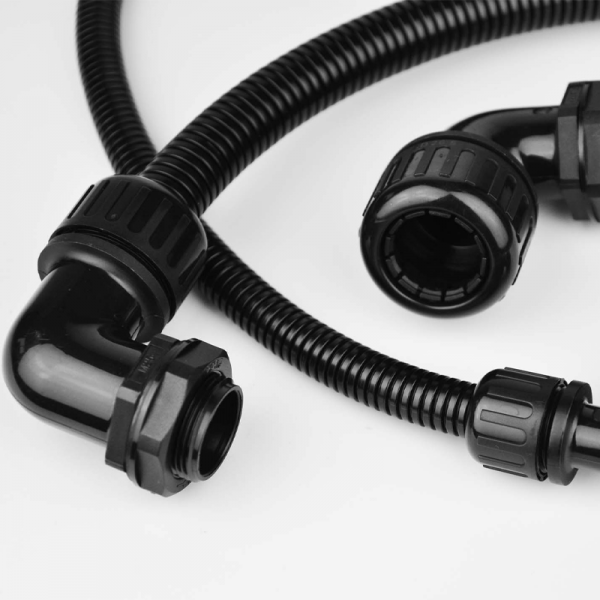

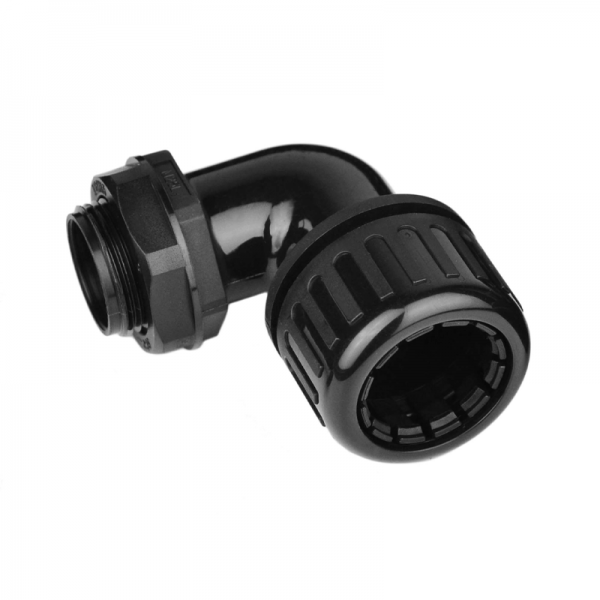

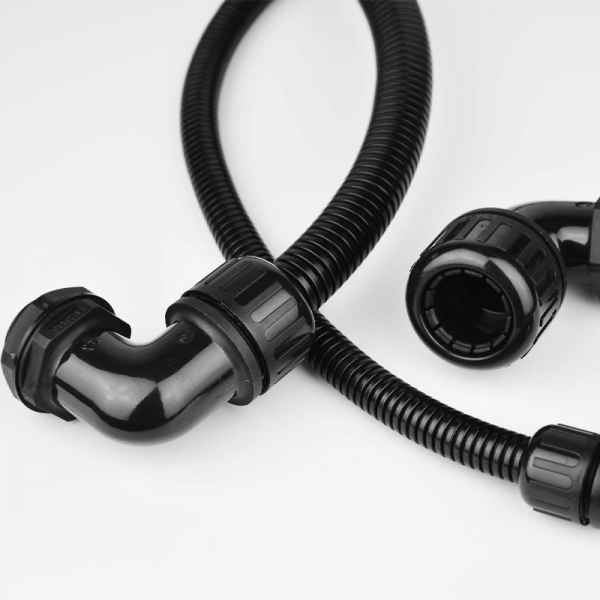

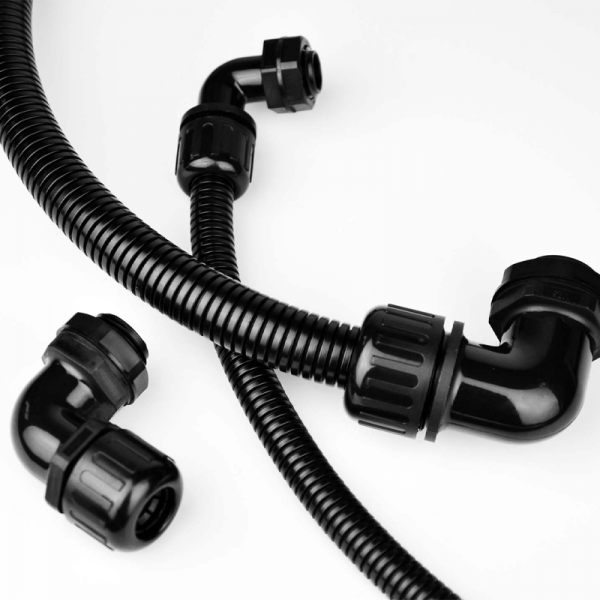

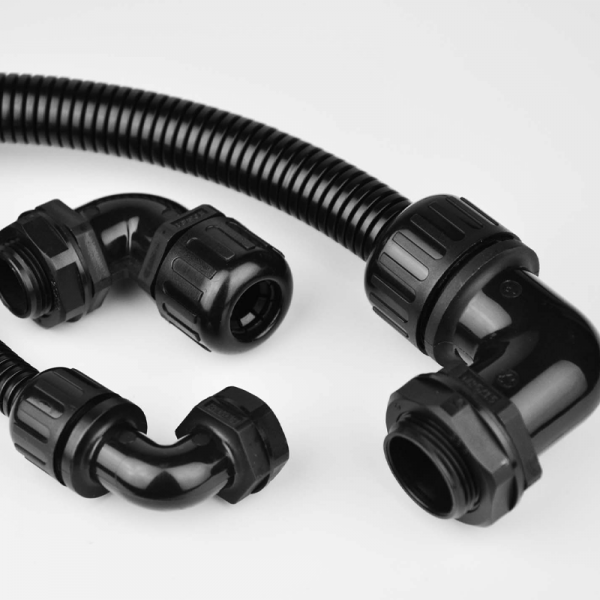

Tensile hose elbow is a kind of anti-pull-off, anti-loosening and anti-breaking connector designed for corrugated hose wiring at the corner. It has a 90-degree bending structure and a reinforced tooth locking mechanism, which can effectively prevent the hose from loosening or falling off due to tension or vibration. It is widely used in electrical equipment, automation control systems, automotive wiring harnesses, industrial equipment wiring entrances and exits, etc.
2. Product Features
✅ 90° bend design: suitable for turning and wiring in narrow spaces to prevent hose cracking
✅ High-strength tensile structure: built-in clamping structure, firmly bite the hose corrugation to prevent pulling off
✅ IP66/IP67 protection: dustproof, waterproof, and oil-proof (depending on the model)
✅ High-quality material: high-toughness flame-retardant nylon PA6 or PP, corrosion-resistant, high and low temperature resistant
✅ Multiple specifications: compatible with a variety of inner and outer diameter bellows
✅ Multiple thread interfaces optional: support international standard threads such as M, PG, G, and NPT
✅ Beautiful and durable: one-piece injection molding, stable structure, long service life

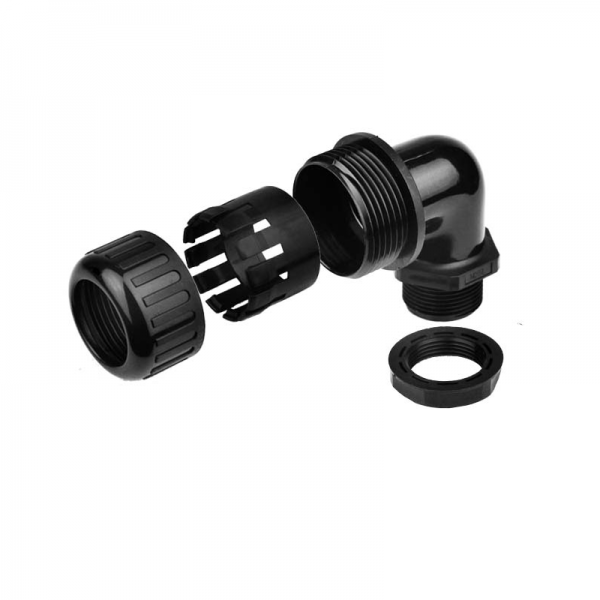

3. Product structure
Elbow body (90 degree angle)
Tensile clamping plate
Sealing ring (special for waterproof type)
Pressure cap nut
Thread interface (external thread)
4. Examples of common model parameters
Model Applicable hose outer diameter Thread specification Elbow angle Material Protection level Pull-off force test
TLE-13 Φ13mm M16×1.5 90° PA6 IP66 ≥80N
TLE-16 Φ16mm PG13.5 90° PA66 IP67 ≥100N
TLE-25 Φ25mm M32×1.5 90° PP IP67 ≥150N
TLE-36 Φ36mm PG29 90° Nylon IP67 ≥180N
The above parameters are for conventional models, and more sizes can be customized.
5. Application areas
⚡ Distribution cabinet, electric control box hose outlet bend
🏭 Industrial automation equipment signal line, power line export
🚘 Automobile engine compartment wiring harness arrangement
📡 Communication equipment, solar inverter wiring
🏗️ Construction site temporary cable protection turning port
🔧 Intelligent manufacturing cable protection system
6. Optional services
🧯 Flame retardant grade supports UL94-V0
🎨 Customizable colors: black, gray, red, yellow, etc.
🔧 Optional threads: M type, PG type, G type, NPT type
🧵 Customizable connector with outlet hole or blind plug structure
📦 OEM/ODM labeling and packaging customization services
📃 Provide CE, RoHS, IP67 and other related certification information
